SU – 6800
$399.00
The SU-6800-2 provides up to TEN YEARS battery life.
Rated to IP 67, the SU-6800-2 is suitable for a wide range of applications, including trailers, containers or any asset that does not have available power.
Batteries Included
Description
The next generation SU-6800 is here – supercharged and more powerful than ever.

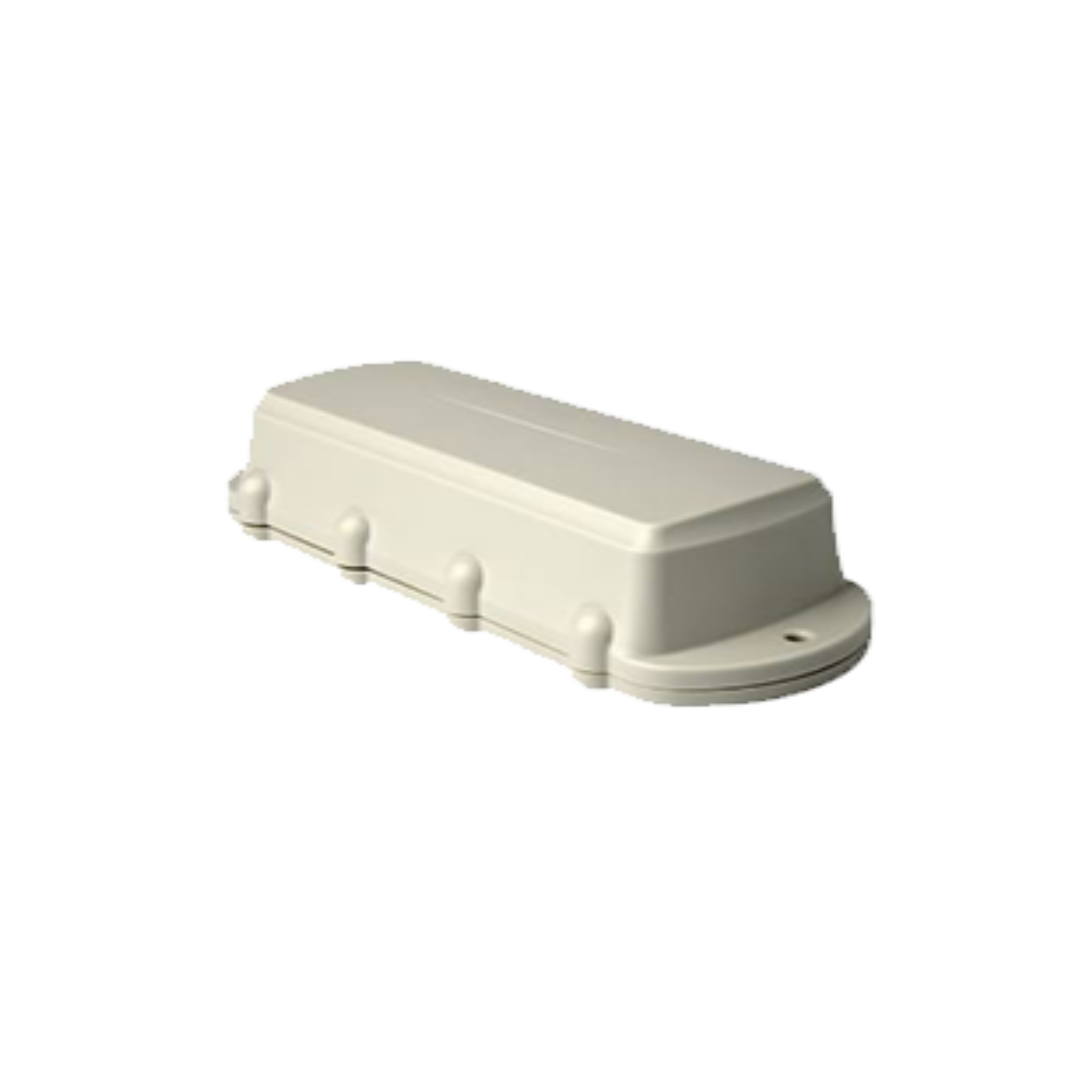

The SU-6800-2 is an IP67 rated, rugged 4G Cat-M1/Nb-IoT GPS device designed for tracking non-powered assets where super-long battery life is required without sacrificing the frequency of updates and accuracy performance.
Convenient mounting holes make it easy to mount the SU-6800-2 in the corrugation for container tracking or conceal on the underside of a trailer.
The SU-6800-2 is powered by 2 x D Cell Lithium Thionyl Chloride (LTC) batteries for super long battery life. LTC batteries also offer continued operation in extreme temperatures.
lATEST 4g cAT m1
Our system uses the very latest 4G Cat M1 mobile network to deliver a secure, reliable level of service.
Superior Quality – Smarter Technology – Lifetime Warranty
Like all of our Tracking products, the SU-6800/2 provides more than just a dot on the map. From smarter technology, to fixed low ongoing costs, Simply Unified are dedicated to providing class leading service backed by our 14 day money back guarantee and lifetime product warranty.
ip67 rated
Rated to IP67, the SU-6800/2 is waterproof and dustproof, making it ideal for both internal or external installation. The SU-6500 is suitable for a wide range of applications, including trailers, container, in fact, anything you need to track!
Up to 10 year battery life
Battery technology and battery management have seen massive improvements recently. Using our cutting edge technology, we can deliver up to TEN years of battery life.
THEFT PROTECTION AND RECOVERY
In Australia, hundreds of vehicles, boats, bikes, caravans and other valuable assets are stolen every single day.Using a quality GPS Tracking system from Simply Unified will give you far more information and should the worst happen, you’ll stand a real chance of getting your gear back.
BUSINESS GRADE REPORTING
Erratic driving not only increases the risk of an accident, but it also increases fuel use, wear and tear and maintenance costs. Our systems provide details on driver behaviour. Features include harsh acceleration, cornering and heavy braking.
Choose your plan
Packages from $99 a year: includes FREE App and unlimited users!
| Track 1 | Track 4 | Track 24 | Track Unlimited | |
|---|---|---|---|---|
| Lifetime Warranty | ✔ | ✔ | ✔ | ✔ |
| Daily Updates Included | 1 Update | 4 Updates | 24 Updates | Unlimited Updates |
| Geofencing | ✔ | ✔ | ✔ | ✔ |
| Basic Reporting | ✔ | ✔ | ✔ | ✔ |
| Customised Reporting | ✔ | ✔ | ✔ | ✔ |
| Email Alerts | ✔ | ✔ | ✔ | ✔ |
| Push Alerts | ✔ | ✔ | ✔ | ✔ |
| 24 Hour Support | ✔ | ✔ | ✔ | ✔ |
| Monthly Service Plan | $10 | $14 | $17 | $24 |
| Annual Service plan | $99 | $140 | $170 | $239 |
| Pay annually and get 2 months FREE! | ✔ | ✔ | ✔ | ✔ |
Detailed Movement Reporting
The amazing flexibility of the SU- 6800-2 can be set to report locations based on specific needs.
Theft Recovery
Should the unthinkable happen and your asset goes missing, with a simple click, users can switch to recovery mode and the unit will report it’s live location every 30 seconds or until the battery fail
Flexible configurations just choose the plan to suit your needs.
The SU-6800-2 can be configured to suit any business need. Configurations can be remotely changed any any time . Configurations are almost limitless . We’ve put together some of the more popular configurations. For heavy duty applications where extended battery life is needs, we recommend the SU-6800
Example 1 – Periodic updates
Using this configuration the SU – 6800-2 can report a location at regular intervals, for example 4 daily updates
Example 2 – Motion based
With this configuration the SU-6800-2 will provide a location on movement staff and movement end
Example 3 – Motion based with breadcrumb
All the benefits of the motion based configuration with addition of recording an update every 2 minutes uploading the updates every 30 minutes.
Jostle Mode
This feature can be added to any profile and provides updates on small movements whilst maximising battery life. Ideal when assets are being moved around a yard
Key Features
Optional Immediate updates on:
- Trip start
- Trip end
The SU-6800-2 can be remotely switched into Recovery Mode which switches the device to do live tracking and reporting – so that you can get your asset back!
The SU-6800 -2 will track successfully where other devices just give up.
This fantastic technology allows the GPS to predict which satellites are in orbit above it and to dramatically reduce the time-to-first-fix of the GPS, and the overall performance of the GPS, especially in ‘urban canyon’ or forested environments
A future firmware version will allow for harsh G-force detection (like assets being dropped or involved in accidents) and report these to the server
The SU-6800-2 has the capacity to hold hundreds of geo-fences that can be downloaded to it from the server. The SU-6800-2 can use this geo-fence information to:
- Implement arrival and departure alerts
- Implement speeding zones with audible warning alerts
- Implement “No-go” and “Keep-out” areas
- Automatically control outputs, for example to switch on warning lights when inside a special area
- Warn drivers when approaching dangerous intersections
- Disable data communications within intrinsically safe areas
Hardware Features
Low-profile IP67 rugged housing
The IP67 rated housing is made of sturdy ABS/Polycarbonate plastic to survive bumps, knocks and to many years in the sun and weather.
It is low-profile making it easier to mount in the corrugation on containers or concealed on the underside of a trailer, for example.
The housing screws together for easy assembly, and has 2 convenient mounting tabs. It also has ‘strap slots’ allowing the SU-6800 Mini to be cable tied or metal strapped to an asset.
Dimensions: 100 mm x 65 mm x 19 mm
Weight: 160 grams with batterie
LTC Batteries
The SU 6800- 2 requires Lithium Thionyl Chloride (LTC) batteries. These offer high capacity, extended temperature tolerance and an extremely low self-discharge rate for the optimal performance in tracking applications.
2 x D Cell LTC batteries
The SU-6800 2 can be set to use Adaptive-Tracking technology where the accelerometer and GPS data are used to intelligently work out if it is moving and to send frequent updates, and to scale the update rate down to once per day if the asset is stationary – to preserve battery life.
10 years @ one position per day (at 25°C)
-20°C to +60°C1
1 Temp spec is for the board and housing. Be sure to check the temperature tolerance of your batteries.
GLONASS
The SU-6800 2 uses both the GPS and GLONASS positioning systems simultaneously.
This allows the device to use twice the number of satellites to get a position fix – making it faster and more accurate.
UBLOX MAX-M8Q GPS module
Supports concurrent GPS and GLONASS
72 channel high sensitivity receiver
-167dBm industry leading tracking performance
Optimal hot-start performance
AssistNow Offline aiding data for fast time-to-first-fix and performance in urban canyon environments
(LNA)
The SU-6800-2’s GPS signals are boosted by a special low-noise amplifier (LNA).
Even when designing a low-cost device our partners are not prepared to compromise on the performance of the product. You will see the difference if you compare device performance in low signal environment.
CE, RCM, ICASA A Tick
Internal GPS and Cellular RF antennas tuned by the RF laboratories to ensure optimal performance
The 3-axis accelerometer allows the SU-6800-2 to ‘sleep’ in an ultra-low power state yet still wake-up when movement occurs.
Future firmware versions will allow for harsh G-force detection (like assets being dropped or involved in accidents)
The SU-6800 -2has enough flash to store over 50,000 data records, and will record information even when out of cellular coverage.
The flash memory is also used to store firmware updates, GPS aiding data, parameters and other important information.
A future firmware version will allow for geo-fences to be loaded into the flash memory of the device and used for geo-fence alerting on the device.
