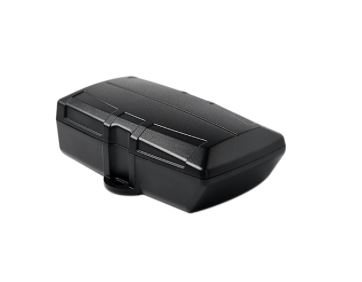

SU-1200
$449.00
HARDWIRED RUGGED GPS TRACKER + BLUETOOTH GATEWAY + IRIDIUM EDGE OPTION
The SU-1200 is a compact 4G Cat-M1/Nb-IoT GPS tracking device with a variety of inputs and outputs to cater for the most demanding applications.
With the internal GPS and cellular antennas installation is a breeze. The internal backup battery provides alerts and tracking operations even when external power is removed.
Monthly service fees start from just $20. Pay annually from just $199
Description
lATEST 4g cAT m1
Our system uses the very latest 4G Cat M1 mobile network to deliver a secure, reliable level of service.
Superior Quality – Smarter Technology – Lifetime Warranty
Like all of our Tracking products, the SU-1200 provides more than just a dot on the map. From smarter technology, to fixed low ongoing costs, Simply Unified are dedicated to providing class leading service backed by our 14 day money back guarantee and lifetime product warranty.
LIVE TRACKING
A GPS Tracking System from Simply Unified provides the ability to monitor and report on all aspects of vehicle activity. Information includes location, speed and heading, along with driver behaviour and stop location and time.
TRACK MORE WITH BLUETOOTH® LOW ENERGY
Monitor other vital vehicle diagnostic data such as tire pressure, fuel levels, trailer temperatures, and more with the SU- 1200’s Bluetooth 5.0 module
battery back-up
The SU-6200 is fitted with it’s own battery back up system for added security
BUSINESS GRADE REPORTING
Erratic driving not only increases the risk of an accident, but it also increases fuel use, wear and tear and maintenance costs. Our systems provide details on driver behaviour. Features include harsh acceleration, cornering and heavy braking.
DRIVER BEHAVIOUR
Erratic driving not only increases the risk of an accident, but it also increases fuel use, wear and tear and maintenance costs. Our systems provide details on driver behaviour. Features include harsh acceleration, cornering and heavy braking.
ACCIDENT RECONSTRUCTION
In the event of an impact or accident, our system will capture the last 120 seconds of vehicle activity on a second-by-second basis.
VEHICLE ROLL-OVER
Our vehicle roll-over system automatically detects a vehicle roll-over situation, raising an immediate alert to notify support staff.
DIGITAL OUTPUTS
Use digital outputs to activate external devices under a given condition. For example: turn on safety lights when entering a mine site.
DIGITAL INPUTS
Our systems incorporate several digital inputs. Using digital inputs provides information from external devices, for example, the use of a HIAB.
Choose your plan
Packages from $199 a year: includes FREE App and unlimited users!
| track basic | track pro | |
|---|---|---|
| Lifetime Warranty | ✔ | |
| Timed Update | 3 Minute Timed Updates | 30 Second Timed Updates |
| Turn By Turn Tracking | ✔ | ✔ |
| Geofencing | ✔ | ✔ |
| Service Log Book | ✔ | |
| Basic Reporting | ✔ | ✔ |
| Customised Reporting | ✔ | |
| Email Alerts | ✔ | ✔ |
| Push Alerts | ✔ | |
| Driver Log Book | ✔ | |
| Business Hours Response | ✔ | ✔ |
| 24 Hour Support | ✔ | |
| Monthly Service Plan | $20 | $24 |
| Annual Service plan | $199 | $239 |
| Pay annually and get 2 months FREE! | ✔ | ✔ |
OUT-OF-COVERAGE TRACKING WITH IRIDIUM
- Fit the SU-1200 with an optional Iridium Edge Module (sold separately) to track assets in remote areas outside of cellular coverage.
- When the SU 1200 is within coverage it uses the cellular modem, which is much more affordable than Iridium airtime.
- When the device can no longer join the cellular network, it switches to the Iridium Network
TRACK MORE WITH BLUETOOTH® LOW ENERGY
- Monitor other vital vehicle diagnostic data such as tire pressure, fuel levels, trailer temperatures, and more with the SU-1200’s Bluetooth 5.0 module.
TRACK MORE WITH BLUETOOTH® LOW ENERGY
- Device management is simple with our OTA Device Management Server and Telematics Guru Tracking Software.
Remotely monitor all of your assets in one place, on desktop or via our mobile app.
Already have tracking software or an ERP? Our devices also integrate with existing platforms.
Key Features
Immediate updates on:
- Trip start
- Trip end
- Impact
- Harsh Driving
- Input trigger
The SU-1200 will track successfully where other devices just give up.
This fantastic technology allows the GPS to predict which satellites are in orbit above it and to dramatically reduce the time-to-first-fix of the GPS, and the overall performance of the GPS, especially in ‘urban canyon’ or forested environments
The SU-1200 trip logging is flexible and can be configured to log based on a variety of parameters including:
- Elapsed time
- Distance travelled
- Change in heading
- Change in speed
- On Stationary
- Accelerometer events (harsh driving)
The SU-1200 uses the built-in accelerometer to detect high G impacts such as accidents and rollovers and reports these events to the server for emergency alerting.
The SU-1200 automatically calibrates its built-in 3 axis accelerometer and uses this to detect harsh driving events:
- Excessive acceleration
- Harsh braking
- Cornering at speed
These events are logged in the SU-1200 along with additional event statistics that allow back-end server platforms to perform sophisticated driver profiling and scoring
The SU-1200 keeps a second-by-second “black box” recording of valuable GPS and accelerometer data for a two hour window. This data can be automatically uploaded to the server when an accident is detected, or it can be requested manually
The SU-1200 supports a low-cost external RFID reader to read cards and keyfobs in order to identify drivers.
The SU-1200 can be updated from the server with lists of Drivers that are allowed to drive the vehicle that it is installed in. When a driver or operator registers on the SU-1200 it will check the Driver List to see if that person is authorised to drive the vehicle. The list also includes information about the driver such as whether they can perform supervisor functions.
The SU-1200 can be installed to immobilise a vehicle and only allow authorised drivers / operators to drive it, or to annoy an unauthorised driver with a loud buzzer.
The SU-1200 has the capacity to hold hundreds of geo-fences that can be downloaded to it from the server. The SU-1200 can use this geo-fence information to:
- Implement arrival and departure alerts
- Implement speeding zones with audible warning alerts
- Implement “No-go” and “Keep-out” areas
- Automatically control outputs, for example to switch on warning lights when inside a special area
- Warn drivers when approaching dangerous intersections
- Disable data communications within intrinsically safe areas
This setting allows the SU-1200 to determine that a trip has started based on accelerometer and GPS data and to automatically set the ‘ignition’ input on the device to emulate the ignition line.
This means that the SU-1200 can be installed with the option of not wiring in the ignition line and ‘emulating’ the ignition based on movement
The SU-1200 continuously scans for Bluetooth devices. DM products include the Guppy Bluetooth and SensorNode Bluetooth.
The SU-1200 intelligently maintains a list of devices in range and reports the list to the server on the following conditions:
- Tag found (comes into range)
- Tag lost (goes out of range)
- Periodic list update
Hardware Features
Snap-Clip ABS Plastic Housing
Made of sturdy UV resistant plastic the housing clips together for easy assembly, and has 2 convenient mounting tabs.
Dimensions: 125mm x 65mm x 30mm
Weight: 250 grams
Harness
24 pin connector, A harness is supplied as standard with the SU-1200
Input Voltage:
8V to 45V DC (max)
Operating Current:
Up to 200mA peak (excludes switched power outputs)
Sleep Current:
<1mA
Internal Back-Up Battery
1100mAh Li-Po Internal Back up battery.
Allows for an external power removed alert, and the device to continue tracking for some time should there be a power cut.
Self-resetting fuse
The SU-1200 passes stringent automotive power “load dump” tests to ensure that it will continue to operate in the harshest electrical systems. A built-in self-resetting fuse makes installation easy and safe.
Operating Temperature
On external power
-20°C to +60°C
Below 0°C the standard internal backup battery’s ability to deliver sufficient power to operate the cellular modem is reduced. Below 0°C and above +45°C the internal backup battery will not be charged as a safety precaution due to dangers associated with charging batteries at extreme temperatures.
Concurrent GPS and GLONASS tracking
72 channel high sensitivity receiver
-169dBm industry leading tracking performance
Battery backed up for optimal hot-start performance
AssistNow Offline aiding data for extremely fast time-to-first-fix and performance in urban canyon environments
Low noise GPS Amplifier
GPS signals are boosted by a special low-noise amplifier (LNA). This allows operation where other units will fail to receive GPS signal.
CE, RCM, ICASA A Tick
Internal GPS and cellular antennas
Having the antennas inside the housing makes for very simple and quick installation. The SU-1200 has had its antennae tuned by the top laboratories to ensure optimal performance.
Flash Memory
Normally data is sent to the server immediately but if the device is out of range there is space to ensure no data is lost – for many weeks of driving!
3-axis accelerometer
Allows the device to detect harsh driving events, and to go to ‘sleep’ when not moving, resulting in extremely low standby current
Bluetooth 5.0
The SU-1200 is equipped with a Bluetooth v5 module, enabling it to communicate with Bluetooth tags and sensors. Such tags can be placed on low-value assets to provide their position when in range of theSU-1200.
Sensors e.g. temperature/tyre pressure can relay information to the SU-1200, which will upload the data to the server.
CONNECTIVITY
Sim Size
Micro (3FF) size cellular SIM card
4G Modem:
uBlox SARA-R410M Modem operates on all major global LTE-Cat-M1 and NB-IoT bands. These new low-power networks are specifically designed for IoT applications, providing great battery life
Supported LTE bands:
1*, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26*, 28 (*roaming bands)
Ignition
1 x Ignition Digital Input
0-48V DC, 5V on/off threshold
6 x Digital Inputs
6 x Digital Inputs with configurable pull-up/pull-down
0-48V DC input range
2 x Digital Outputs
2 x Switched Ground Digital Outputs, easily wired up to switch external lights, relays, buzzers etc. Can be used to immobilise a vehicle. 500mA max.
1 x Analogue Input
1 x 0-30V analogue input, with auto ranging
Internal Buzzer
Audible alert without requiring the installation of an external buzzer. Can be used for speeding alerts, harsh driving alerts, reminders to swipe RFID tags, error conditions, input feedback and other events.
2 x Switched Power Out
The SU-1200 can provide power to external peripherals allowing for easy installation and doing away with the need for additional external power supplies.
Outputs are either 5V (external power connected)
or Vbatt (no external power)
Maximum current: 400mA
Driver Identification
Driver ID via RFID reader or iButton
The SU-1200 can be update from the server with lists of Drivers that are allowed to drive the vehicle. The G120 can be installed to immobilise a vehicle and only allow authorised drivers/operators to drive it.
Supported Driver ID interfaces:
RS232, Wiegand, TTL, iButton
3rd Party readers which output one of the above formats can be integrated into the SU-1200 FW to enable current site cards/passes to be used.
RS232
Can be used to connect and Iridium Edge Module for out of cellular coverage.
Diagnostic LED
The diagnostic LED makes it easy to see if the device is operating correctly.
