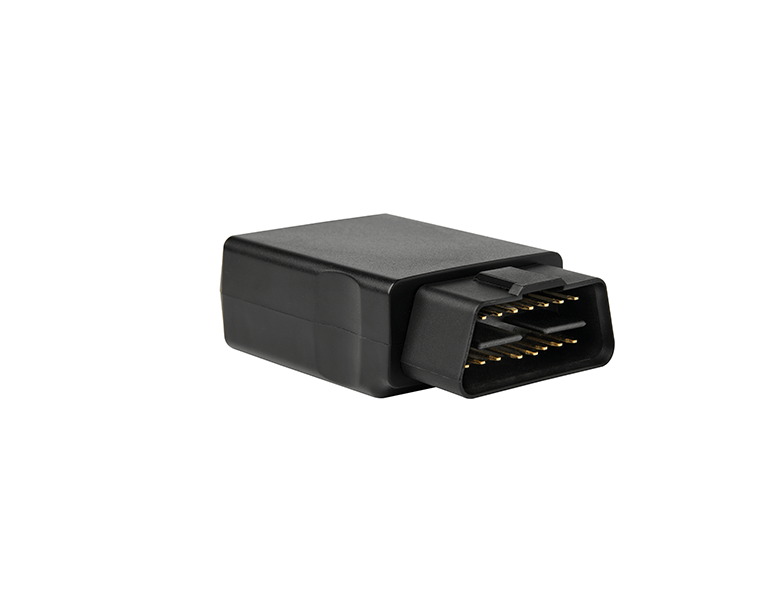

OBD2 Tracking Device
$299.00
The SU-3300 is a compact and economical, yet feature-rich GPS/GLONASS tracking device available in 4G Cat-M1/NB-IoT .
The SU-3300 simply plugs into the vehicle’s OBDII port, meaning zero-install cost. Perfect for rental fleets where a hard-wired install is not desirable.
There is no lock-in contract and monthly service fee are just from just $20
Description
lATEST 4g cAT m1
Our system uses the very latest 4G Cat M1 mobile network to deliver a secure, reliable level of service.
plug and play - no tools needed
The SU-3300 plugs directly into the vehicles OBD2 data port. Most cars and light commercial vehicles newer than 1996 will have an OBD 2 socket – usually under the dash.
Superior Quality – Smarter Technology – Lifetime Warranty
Like all of our Tracking products, the SU-3300 provides more than just a dot on the map. From smarter technology, to fixed low ongoing costs, Simply Unified are dedicated to providing class leading service backed by our 14 day money back guarantee and lifetime product warranty.
LIVE TRACKING
A GPS Tracking System from Simply Unified provides the ability to monitor and report on all aspects of vehicle activity. Information includes location, speed and heading, along with driver behaviour and stop location and time.
BUSINESS GRADE REPORTING
Erratic driving not only increases the risk of an accident, but it also increases fuel use, wear and tear and maintenance costs. Our systems provide details on driver behaviour. Features include harsh acceleration, cornering and heavy braking.
RUN HOURS
Our systems incorporate several digital inputs. Using digital inputs provides information from external devices, for example, the use of a HIAB.
Choose your plan
Packages from $199 a year: includes FREE App and unlimited users!
| track basic | track pro | |
|---|---|---|
| Lifetime Warranty | ✔ | |
| Timed Update | 3 Minute Timed Updates | 30 Second Timed Updates |
| Turn By Turn Tracking | ✔ | ✔ |
| Geofencing | ✔ | ✔ |
| Service Log Book | ✔ | |
| Basic Reporting | ✔ | ✔ |
| Customised Reporting | ✔ | |
| Email Alerts | ✔ | ✔ |
| Push Alerts | ✔ | |
| Driver Log Book | ✔ | |
| Business Hours Response | ✔ | ✔ |
| 24 Hour Support | ✔ | |
| Monthly Service Plan | $20 | $24 |
| Annual Service plan | $199 | $239 |
| Pay annually and get 2 months FREE! | ✔ | ✔ |
Frequently asked questions
There is no minimum contract period. Cancel at any time.
Yes, we have Apps for I-phone and Android phones
Yes, you can upgrade or downgrade your plan, charges are pro-rata
We have two options.
Option 1 – Suspend Service
We will reduce your service fee to just $5.95 per month. You will keep all historic data along with all customised portal settings, for example geofences .
Option 2 – Cancel and reconnect
This will disconnect your device and remove any historic data and customised portal settings. You are able to reconnect at anytime, however a re-connection fee of $25 applies.
Yes, we are able to provide you with a second data feed to your own server.
For more information on our service plans please Contact Us
Key Features
Immediate updates on:
- Trip start
- Trip end
- Impact
- Harsh Driving
- Input trigger
The SU-3300 will track successfully where other devices just give up.
This fantastic technology allows the GPS to predict which satellites are in orbit above it and to dramatically reduce the time-to-first-fix of the GPS, and the overall performance of the GPS, especially in ‘urban canyon’ or forested environments
The SU-3300 trip logging is flexible and can be configured to log based on a variety of parameters including:
- Elapsed time
- Distance traveled
- Change in heading
- Change in speed
- On Stationary
- Accelerometer events (harsh driving)
The SU-3300 uses the built-in accelerometer to detect high G impacts such as accidents and rollovers and reports these events to the server for emergency alerting.
The SU-3300 automatically calibrates its built-in 3 axis accelerometer and uses this to detect harsh driving events:
- Excessive acceleration
- Harsh braking
- Cornering at speed
These events are logged in the SU-3300 along with additional event statistics that allow back-end server platforms to perform sophisticated driver profiling and scoring
The SU-3300 keeps a second-by-second “black box” recording of valuable GPS and accelerometer data for a two hour window. This data can be automatically uploaded to the server when an accident is detected, or it can be requested manually
The SU-3300 has the capacity to hold hundreds of geo-fences that can be downloaded to it from the server. The SU-3300 can use this geo-fence information to:
- Implement arrival and departure alerts
- Implement speeding zones with audible warning alerts
- Implement “No-go” and “Keep-out” areas
- Automatically control outputs, for example to switch on warning lights when inside a special area
- Warn drivers when approaching dangerous intersections
- Disable data communications within intrinsically safe areas
This setting allows the SU-1200 to determine that a trip has started based on accelerometer and GPS data and to automatically set the ‘ignition’ input on the device to emulate the ignition line.
This means that the SU-1200can be installed with the option of not wiring in the ignition line and ‘emulating’ the ignition based on movement
Hardware Features
The housing clips together to make provisioning devices simple and efficient.
Dimensions:
L 71 x W 46 x H 24 mm
Voltage
- 8V to 36V DC (max)
Self-resetting fuse
The SU-3300 passes stringent automotive power “load dump” tests to ensure that it will continue to operate in the harshest electrical systems. A built-in self-resetting fuse makes installation easy and safe.
-20°C to +60°C
Concurrent GPS and GLONASS tracking
72 channel high sensitivity receiver
-169dBm industry leading tracking performance
AssistNow Offline aiding data for extremely fast time-to-first-fix and performance in urban canyon environments
(LNA)
The SU-2700A ’s GPS signals are boosted by a special low-noise amplifier (LNA). This allows the SU-2700A to operate where normal units will fail to receive GPS signal
Even when designing a low-cost device our partners are not prepared to compromise on the performance of the product. You will see the difference if you compare device performance in low signal environments
CE, RCM, ICASA A Tick
Internal GPS and cellular antennas
Having the antennas inside the housing makes for very simple and quick installation. The SU-2700A has had its antennae tuned by the top laboratories to ensure optimal performance.
